ABOX-9317

  • Model No.:ABOX-9317
  • Processor:Support 4/5th Intel Core series GPU
  • Memory:2*204Pin DDR4 SO-DIMM socket, support 1866/2133MHz DDR4 memory,up to 16G
  • I/O Port: :1*LINE OUT&MIC,6*USB,2*LAN,1*HDMI,1*VGA,1*KB/MS,1*LPT,1*16-bit DIO
BASIC INFO

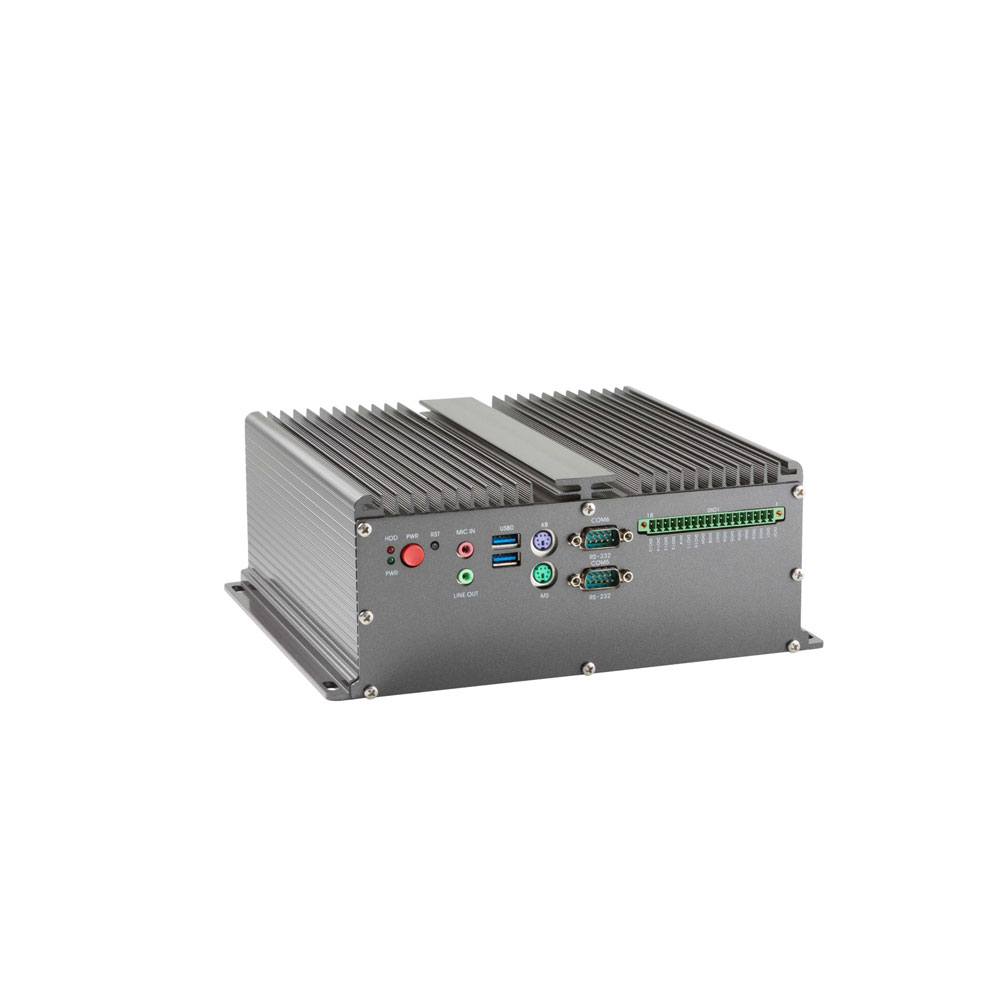

6 COM and 6USB Fanless Box PC
Specifications
Model No. ABOX-9317
Processor System CPU 5th Generation Intel® Core™ i5-5257U3M Cache, up to 3.10 GHz
Chipset i5-5257U GPU
BIOS 64Mb AMI BIOS
Memory Max. Capacity up to 16.0GB Max. Capacity
Socket 2*204Pin DDR3 SO-DIMM socket
Graphics Controller Intel HD Graphics
Ethernet LAN 2*Intel I211-AT( 2*10/100/1000 Mbps Ethernet Controller, Support PXE/WOL )
Audio Interface HD Audio ,1*Line-out, 1* Mic-in
Storage HDD 1 x SATA HDD Bay for 2.5"
1 x mSATA
Expansion PCI 1x PCI slot (1*PCIEX4 Optional,up to support PCIEX2 rate device)
Mini PCIE 1*Mini PCIE
External I/O Interface Serial Port 2*RS-232, 2*RS-232/485, 2*RS-232/422/485
USB 6*USB
Audio 1*LINE OUT & MIC
LAN 2*RJ45
KB/MS 1*KB, 1*MS
LPT 1*LPT
DIO 1*16-bit DIO
Display 1*VGA, 1*HDMI
Inner I/O Interface USB 1*USB
SIM 1*SIM (Optional)
LVDS 1*LVDS (Optional)
Watchdog Watchdog timer Programmable 256 levels timer interval, setup by software
Power Requirements Power Input Votage DC_IN 12~24V
Power Adapter AC-to-DC Adapter, DC12V5A 60W (Optional),with DC Jack Plug
Power cable With plug USA type/ Europe type/UK type (by requirement)
Software Support Microsoft Windows XP,Win7/8/10,windows 2008
Linux Support (by project)
General Dimensions (W x Dx H) 246 x 209 x 93mm
Case Colour Iron gray
Mounting Stand/ Wall
Enclosure Aluminum Housing
Thermal Solution Fanless
Environment Operating Temperature -20 ~ 60°C
Storage Temperature -40 ~ 80°C
Relative Humidity 5~ 95%  (non-condensing)
