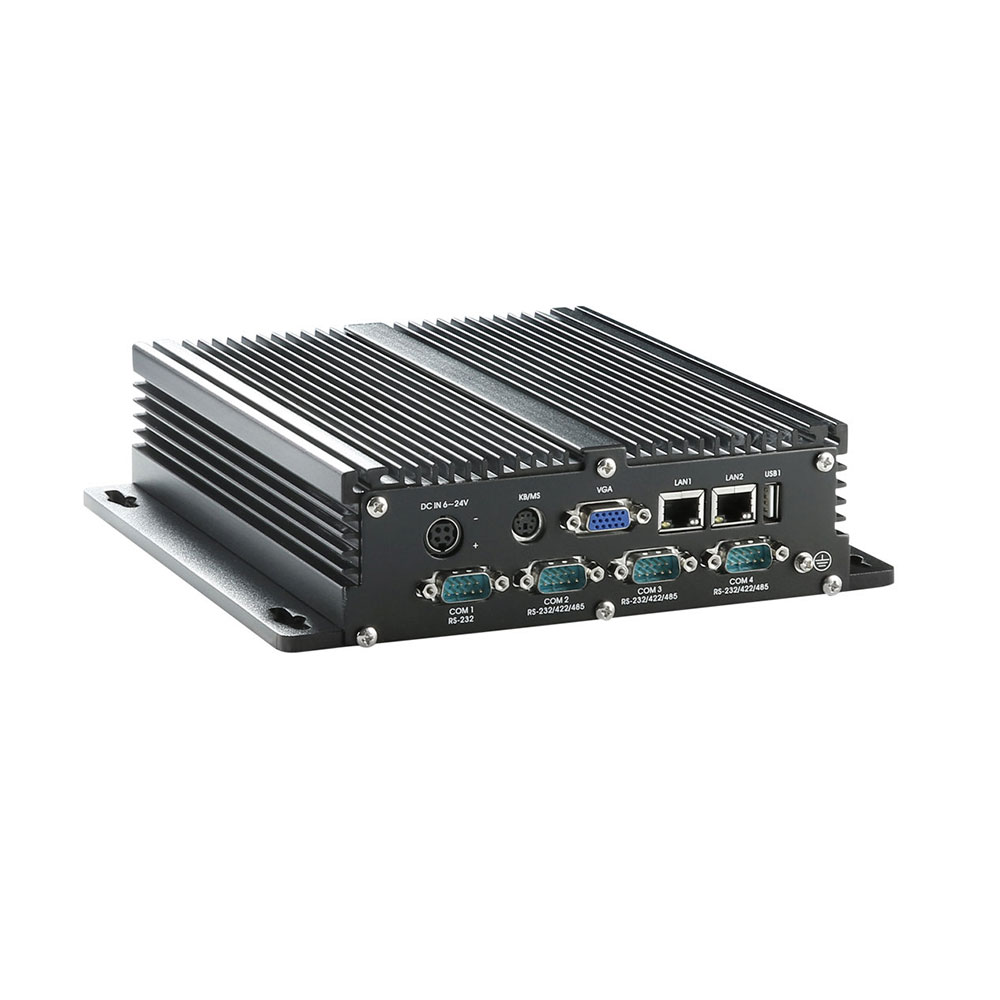

ABOX-6212

  • 处理器:U2500
  • 规 格:4串+2LAN
  • 类 别:低功耗工控机
详细信息

CPU:Intel Core Duo U2500 CPU
芯片组:Intel 945GM+ICH7M
内存板载 1.0GB DDR2
I/O端口:2*RJ45,1*VGA,1*Audio,5*USB,1*PS/2,1*eSATA
串口:1*RS-232,3*RS-232/422/485

看门狗:256级,可编程时间到中断、时间到系统复位
存储空间:1*2.5"SATA盘位,1*CF槽位
扩展槽位:1x mPCIE槽位
电源:DC_6~24V
尺寸:220*210*58 mm(W*D*H)

Processor System CPU Intel® Core™ Duo Processor U2500 (2M Cache, 1.20 GHz)
Chipset Intel945GM+ICH7M
BIOS 4Mb AMI BIOS
Memory Max. Capacity On-board 1GB DDR2 533/667MHz  (up to 4.0GB Max. Capacity )
Socket 1*200Pin DDR II SO-DIMM
Graphics Controller Intel® GMA950
VGA Supports resolution up to 2048x1536
Ethernet LAN 2*10/100/1000 Mbps Ethernet Controller, Support PXE/WOL
Audio Interface 1*Line-out, 1* Mic-in
Storage HDD 1 x SATA HDD Bay for 2.5"
CF 1 x CF slot
Expansion Mini PCIe 1x mPCIE
External I/O Interface Serial Port 1*RS-232, 3*RS-232/422/485
USB 5*USB
KB/MS 1*PS/2
SATA 1*eSATA
LAN 2*RJ45
Display 1*VGA
Other Watchdog timer Programmable 256 levels timer interval, setup by software
Digital I/O 8-bit programmable (Reserved)
Power Requirements Power Input Votage DC_IN 6~24V
Power Adapter AC-to-DC Adapter, DC12V/5A 60W (Optional),with DC Jack Plug
Power cable With plug USA type/ Europe type/UK type (by requirement)
Software Support Microsoft Windows XP,Win7/8/10,windows 2008
Linux Support (by project)
General Dimensions (W x Dx H) 220 x 210 x 58mm
Case Colour Black
Mounting Stand/ Wall
Enclosure Aluminum Housing
Thermal Solution Fanless
Environment Operating Temperature -20 ~ 60°C
Storage Temperature -40 ~ 80°C
Relative Humidity 5~ 95%  (non-condensing)
